产品介绍 Overview
·采用优质铬钒钢锻造，薄壁设计

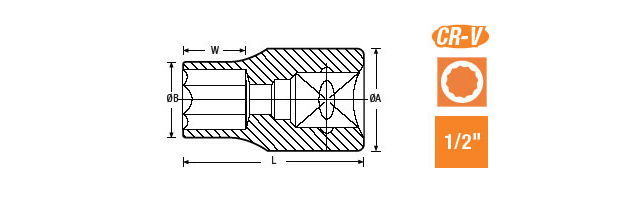

技术参数 Specifications
| 货号 | 规格(mm) | L(mm) | W(mm) | ΦA(mm) | ΦB(mm) |
| S012008 | 8 | 38 | 10 | 21.7 | 13.2 |
| S012010 | 10 | 38 | 12 | 21.7 | 15.5 |
| S012011 | 11 | 38 | 12 | 21.7 | 16.3 |
| S012012 | 12 | 38 | 12 | 21.7 | 17.6 |
| S012013 | 13 | 38 | 12 | 21.8 | 19.1 |
| S012014 | 14 | 38 | 12 | 21.7 | 20.4 |
| S012015 | 15 | 38 | 16 | 20.7 | 21.7 |
| S012016 | 16 | 38 | 16 | 20.7 | 21.7 |
| S012017 | 17 | 38 | 16 | 21.8 | 23.9 |
| S012018 | 18 | 38 | 16 | 22.9 | 25.6 |
| S012019 | 19 | 38 | 18 | 22.9 | 25.6 |
| S012020 | 20 | 38 | 18 | 24 | 27.6 |
| S012021 | 21 | 38 | 18 | 24 | 27.6 |
| S012022 | 22 | 40 | 18 | 26 | 29.8 |
| S012023 | 23 | 40 | 20 | 28.1 | 31.6 |
| S012024 | 24 | 40 | 20 | 28.1 | 31.6 |
| S012025 | 25 | 40 | 20 | 32.8 | 32.8 |
| S012026 | 26 | 43 | 21 | 29.1 | 34.3 |
| S012027 | 27 | 43 | 21 | 30.1 | 34.3 |
| S012030 | 30 | 43 | 21 | 34.1 | 39.7 |
| S012032 | 32 | 43 | 22 | 36.3 | 41.6 |
| S012201 | 1/4" | 38 | 12 | 21.8 | 10.4 |
| S012202 | 5/16" | 38 | 10 | 21.8 | 13.5 |
| S012203 | 3/8" | 38 | 12 | 21.8 | 14.5 |
| S012204 | 7/16" | 38 | 12 | 21.8 | 15.5 |
| S012205 | 1/2" | 38 | 12 | 21.8 | 18.7 |
| S012206 | 9/16" | 38 | 16 | 22.8 | 20.8 |
| S012207 | 19/32" | 38 | 14 | 20.8 | 21.8 |
| S012208 | 5/8" | 38 | 14 | 20.3 | 21.8 |
| S012209 | 11/16" | 38 | 14 | 21.8 | 23.9 |
| S012210 | 3/4" | 38 | 18 | 22.9 | 26 |
| S012211 | 25/32" | 38 | 18 | 23.9 | 28 |
| S012212 | 13/16" | 38 | 18 | 23.9 | 28 |
| S012213 | 7/8" | 40 | 20 | 26 | 29.1 |
| S012214 | 15/16" | 40 | 20 | 28 | 32.2 |
| S012215 | 1" | 40 | 20 | 30.1 | 33.3 |
| S012216 | 1-1/16" | 43 | 21 | 30.1 | 35.4 |
| S012217 | 1-1/8" | 43 | 21 | 32.2 | 37.4 |
| S012218 | 1-3/16" | 43 | 21 | 34.3 | 39.5 |
| S012219 | 1-1/4" | 43 | 22 | 35.4 | 41.6 |
